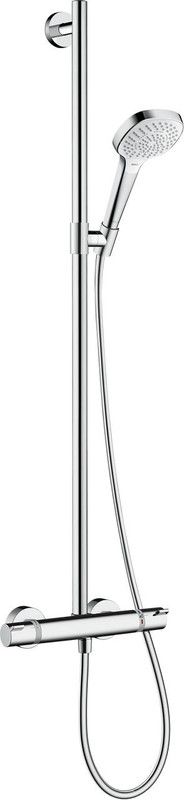

- Consists of: hand shower, Thermostatic shower mixer, shower hose, slider, shower bar
- spray type hand shower: Massage spray, IntenseRain, SoftRain
- wallbar could be also used as grab bar
- Maximum flow rate (at 3 bar): 16 l/min
- Flow rate of hand shower (at 3 bar): 16 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Shower rail: 1000 mm
- Shower bar diameter: 25 mm
- height-adjustable hand shower holder
- thermostat Ecostat Comfort
- safety stop at 40°C
- adjustable hot water limitation
- outlets controlled via volume control/diverter and may not be used simultaneously
- exposed design allows easy installation, all working parts are outside of the wall
- Connection dimension 1/2"
- Connection thread ½"
- Centre distance 150 mm ± 12 mm
- operating pressure: min 1 bar / max 10 bar
- Width:
- 115.00 (cm)
- Height:
- 365.00 (cm)
- Depth:
- 1,100.00 (cm)
